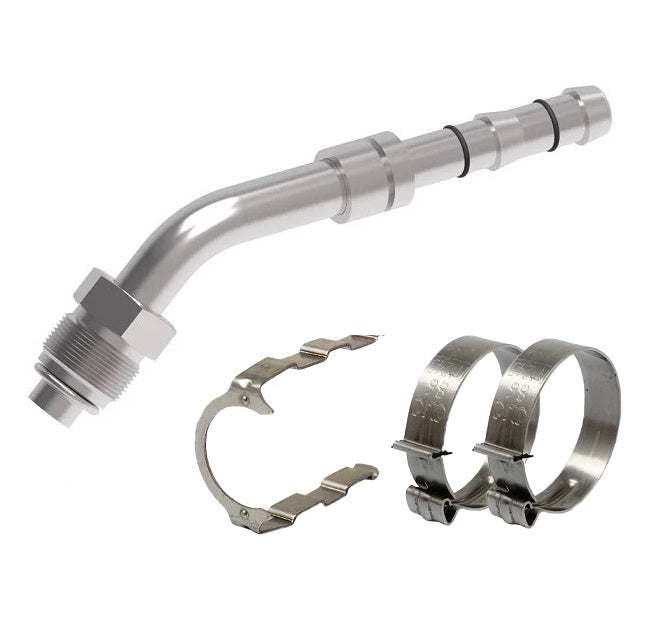

FF14215 Aeroquip by Danfoss | EZ Clip System Fitting Kit | Includes FJ3116-01-0606S Male O-Ring Short Pilot 45° Elbow Fitting with FF14171 Clip & Cage Kit

FF14215 Aeroquip by Danfoss | EZ Clip System Fitting Kit | Includes FJ3116-01-0606S Male O-Ring Short Pilot 45° Elbow Fitting with FF14171 Clip & Cage Kit

$244.79 - $244.79
$244.79
$244.79 - $244.79
$244.79

Aeroquip® by Danfoss
EZ Clip System Fitting Kit

EZ Clip Fitting, pre-packed, with the needed clips and cages for installation, in a single package.
Specifications for Variant SKU: FF14215 Danfoss
Brand: Aeroquip, E-Z Clip
Series: EZ Clip
Shape (Orientation): 45 Degree
Material(s): Carbon Steel
Compatible with the following Series: GH001 Series
Additional Information:
Fitting Kit
Part Number		 Kit Contents
Fitting Size Hose Size EZ Clip Fitting Description Fitting
Part Number		 Cages & Clips
Kit
FF14176 -06 -06 Female O-Ring Short Pilot FJ5984-0606S FF14171
FF14177 -06 -08 Female O-Ring Short Pilot FJ5984-0608S FF14172
FF14178 -08 -08 Female O-Ring Short Pilot FJ5984-0808S FF14172
FF14179 -08 -10 Female O-Ring Short Pilot FJ5984-0810S FF14173
FF14180 -10 -10 Female O-Ring Short Pilot FJ5984-1010S FF14173
FF14181 -10 -12 Female O-Ring Short Pilot FJ5984-1012S FF14174
FF14182 -12 -12 Female O-Ring Short Pilot FJ5984-1212S FF14174

FF14183 -06 -06 Female O-Ring Short Pilot 45° Elbow FJ3055-01-0606S FF14171
FF14184 -08 -08 Female O-Ring Short Pilot 45° Elbow FJ3055-03-0808S FF14172
FF14185 -10 -10 Female O-Ring Short Pilot 45° Elbow FJ3055-05-1010S FF14173
FF14186 -12 -12 Female O-Ring Short Pilot 45° Elbow FJ3055-07-1212S FF14174

FF14187 -06 -06 Female O-Ring Short Pilot 90° Elbow FJ5985-0606S FF14171
FF14188 -06 -08 Female O-Ring Short Pilot 90° Elbow FJ5985-0608S FF14172
FF14189 -08 -08 Female O-Ring Short Pilot 90° Elbow FJ5985-0808S FF14172
FF14190 -08 -10 Female O-Ring Short Pilot 90° Elbow FJ5985-0810S FF14173
FF14191 -10 -10 Female O-Ring Short Pilot 90° Elbow FJ5985-1010S FF14173
FF14192 -10 -12 Female O-Ring Short Pilot 90° Elbow FJ5985-1012S FF14174
FF14193 -12 -12 Female O-Ring Short Pilot 90° Elbow FJ5985-1212S FF14174

FF14194 -10 -10 Female O-Ring Short Pilot (R134a Low Side Port) FJ3012-02-1010S FF14173
FF14195 -10 -12 Female O-Ring Short Pilot (R134a Low Side Port) FJ3012-01-1012S FF14174
FF14196 -12 -12 Female O-Ring Short Pilot (R134a Low Side Port) FJ3012-03-1212S FF14174

FF14197 -06 -06 Male O-Ring Short Pilot FJ3052-0606S FF14171
FF14198 -06 -08 Male O-Ring Short Pilot FJ3052-0608S FF14172
FF14199 -08 -08 Male O-Ring Short Pilot FJ3052-0808S FF14172
FF14200 -10 -10 Male O-Ring Short Pilot FJ3052-1010S FF14173
FF14201 -10 -12 Male O-Ring Short Pilot FJ3052-1012S FF14174
FF14202 -12 -12 Male O-Ring Short Pilot FJ3052-1212S FF14174

FF14203 -06 -06 Male O-Ring Short Pilot 90° Elbow FJ3019-03-0606S FF14171
FF14204 -06 -08 Male O-Ring Short Pilot 90° Elbow FJ3019-02-0608S FF14172
FF14205 -08 -08 Male O-Ring Short Pilot 90° Elbow FJ3019-04-0808S FF14172
FF14206 -08 -10 Male O-Ring Short Pilot 90° Elbow FJ3019-06-0810S FF14173
FF14207 -10 -12 Male O-Ring Short Pilot 90° Elbow FJ3019-01-1012S FF14174
FF14208 -12 -12 Male O-Ring Short Pilot 90° Elbow FJ3019-05-1212S FF14174
FF14209 -10 -10 Male O-Ring Short Pilot 90° Elbow FJ3019-07-1010S FF14173

FF14210 -06 -06 Lifesaver Braze Nipple FF12262-0606 FF14171
FF14211 -08 -08 Lifesaver Braze Nipple FF12262-0808 FF14172
FF14212 -10 -10 Lifesaver Braze Nipple FF12262-1010 FF14173
FF14213 -10 -12 Lifesaver Braze Nipple FF12262-1012 FF14174

FF14214 -08 -08 Male O-Ring Short Pilot 45° Elbow FJ3116-03-0808S FF14172
FF14215 -06 -06 Male O-Ring Short Pilot 45° Elbow FJ3116-01-0606S FF14171
FF14216 -10 -10 Male O-Ring Short Pilot 45° Elbow FJ3116-02-1010S FF14173

FF14217 -06 -06 Male O-Ring Pilot Bulkhead FJ3513-0606S FF14171
- -08 -08 Male O-Ring Pilot Bulkhead FJ3513-0808S FF14172
FF14219 -10 -10 Male O-Ring Pilot Bulkhead FJ3513-1010S FF14173

FF14220 -06 -06 Male O-Ring Pilot Bulkhead 90° Elbow FJ3514-0606S FF14171
FF14221 -08 -08 Male O-Ring Pilot Bulkhead 90° Elbow FJ3514-0808S FF14172
FF14222 -10 -10 Male O-Ring Pilot Bulkhead 90° Elbow FJ3514-1010S FF14173
FF14223 -10 -12 Male O-Ring Pilot Bulkhead 90° Elbow FJ3514-1012S FF14174

FF14224 -10 -10 Female O-Ring Short Pilot (R134a Low Side Port) FJ3054-1010S FF14173
FF14225 -10 -12 Female O-Ring Short Pilot (R134a Low Side Port) FJ3054-1012S FF14174

FF14226 -08 -08 Female O-Ring Short Pilot (R134a High Side Port) FJ3053-0808S FF14172

FF14227 -06 -06 Female O-Ring Long Pilot (Charge Port) 90° Elbow FJ3289-03-0606S FF14171
FF14228 -08 -08 Female O-Ring Long Pilot (Charge Port) 90° Elbow FJ3289-01-0808S FF14172
FF14229 -10 -12 Female O-Ring Long Pilot (Charge Port) 90° Elbow FJ3289-05-1012S FF14174

FF14230 -06 -06 Splicer (Switch Port) FJ3171-0606S FF13819
FF14231 -08 -08 Splicer (Switch Port) FJ3171-0808S FF13820
FF14232 -10 -10 Splicer (Switch Port) FJ3171-1010S FF13821
FF14233 -12 -12 Splicer (Switch Port) FJ3171-1212S FF13822

FF14234 -10 -12 Male O-Ring Short Pilot (R134a Low Side Port) FJ3132-02-1012S FF14174

FF14235 -08 -08 Male O-Ring Short Pilot (R134a High Side Port) FJ3131-02-0808S FF14172

FF14236 -08 -08 Male O-Ring Short Pilot (R134a High Side Port) 90° Elbow FJ3134-02-0808S FF14172

FF14237 -10 -12 Male O-Ring Short Pilot (R134a Low Side Port) 90° Elbow FJ3135-02-1012S FF14174

FF14238 -06 -06 Splicer 90° Elbow FJ3058-01-0606S FF14171
FF14239 -08 -08 Splicer 90° Elbow FJ3058-02-0808S FF14172
FF14240 -10 -10 Splicer 90° Elbow FJ3058-03-1010S FF14173

FF14241 -06 -06 Female SAE 45° Flare FJ3057-01-0606S FF14171
FF14242 -08 -08 Female SAE 45° Flare FJ3057-03-0808S FF14172
FF14243 -10 -10 Female SAE 45° Flare FJ3057-05-1010S FF14173
FF14244 -12 -12 Female SAE 45° Flare FJ3057-07-1212S FF14174

FF14245 -06 -06 Female ORS Swivel 90° Elbow FJ5994-01-0606S FF14171
FF14246 -08 -08 Female ORS Swivel 90° Elbow FJ5994-02-0808S FF14172
FF14247 -10 -10 Female ORS Swivel 90° Elbow FJ5994-04-1010S FF14173
FF14248 -12 -12 Female ORS Swivel 90° Elbow FJ5994-03-1212S FF14174
FF14249 -10 -12 Female ORS Swivel 90° Elbow FJ5994-05-1012S FF14174

FF14250 -06 -06 Splicer FJ3045-0606S FF14171
FF14251 -08 -08 Splicer FJ3045-0808S FF14172
FF14252 -10 -10 Splicer FJ3045-1010S FF14173
FF14253 -12 -12 Splicer FJ3045-1212S FF14174

FF14254 -12 -12 Splicer 90° Elbow FJ3058-04-1212S FF14174

FF14255 -10 -10 Splicer (R134a Low Side Port) FJ5986-1010S FF13821
FF14256 -12 -12 Splicer (R134a Low Side Port) FJ5986-1212S FF13822

FF14257 -06 -06 Splicer (R134a High Side Port) FJ5995-0606S FF13819
FF14258 -08 -08 Splicer (R134a High Side Port) FJ5995-0808S FF13820
FF14259 -10 -10 Splicer (R134a High Side Port) FJ5995-1010S FF13821

FF14260 -06 -06 Female O-Ring Short Pilot (R134a High Side Port) 90° Elbow FJ3013-02-0606S FF14171
FF14261 -08 -08 Female O-Ring Short Pilot (R134a High Side Port) 90° Elbow FJ3013-03-0808S FF14172
FF14262 - - Female O-Ring Short Pilot (R134a High Side Port) 90° Elbow FJ3013-01-0810S FF14173

FF14263 -08 -06 Pad Style Connection (Volvo) FJ3977-0806S FF14171
FF14264 -08 -10 Pad Style Connection (Volvo) FJ3977-0810S FF14173
- -10 -12 Pad Style Connection (Volvo) FJ3977-1012S FF14174

- -10 -12 Pad Style Connection (Volvo) (R134a Low Side Port) FJ3978-1012S FF14174

- -10 -12 Pad Style Connection (Volvo) (R134a Low Side Port) 60° Elbow FJ3979-1012S FF14174

- -08 -10 Pad Style Connection 180° FJ3980-0810S FF14173

FF14269 -10 -12 Pad Style Connection (Volvo) (R134a Low Side Port) 90° Elbow FJ3981-1012S FF14174

FF14270 -08 -06 Pad Style Connection (Volvo) 90° Elbow FJ3982-0806S FF14171
FF14271 -08 -10 Pad Style Connection (Volvo) 90° Elbow FJ3982-0810S FF14173

FF14272 -08 -06 Pad Style Connection (Volvo) (Pad Orientation 90°) 90° Elbow FJ3983-0806S FF14171

- -10 -08 Female Rotalok Fitting EJ3320-1008S FF14172

FF14371 -10 -08 Female Rotalok Short Drop 90° Elbow EJ3321-1008S FF14172
FF14372 -10 -12 Female Rotalok Short Drop 90° Elbow EJ3321-1012S FF14174

- -10 -08 Female Rotalok 90° Elbow FJ3225-1008S FF14172
- -10 -12 Female Rotalok 90° Elbow EJ3225-1012S FF14174
FF14375 -10 -10 Female Rotalok 90° Elbow FJ3225-1010S FF14173

FF14380 -12 -10 Female O-Ring (Short Pilot) FJ5984-1210S FF14173

FF14381 -10 -10 Female O-Ring (Long Pilot) (Charge Port 7/16-20 thd) 90° Elbow FJ3289-02-1010S FF14173

FF14382 -06 -06 Female SAE 45° Flare 90° Elbow FJ3149-01-0606S FF14171
FF14383 -08 -08 Female SAE 45° Flare 90° Elbow FJ3149-03-0808S FF14172
FF14384 -10 -10 Female SAE 45° Flare 90° Elbow FJ3149-04-1010S FF14173
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
