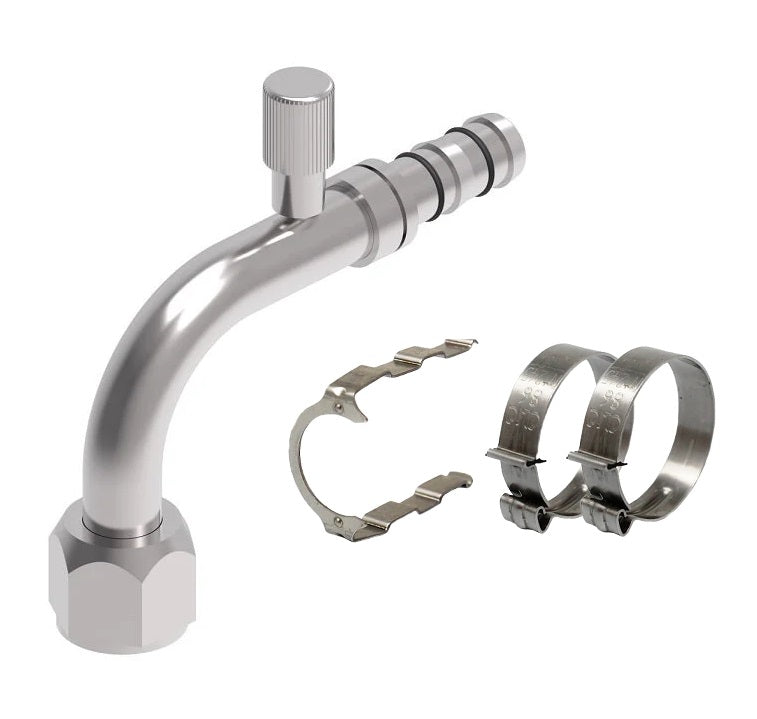

FF14195 Aeroquip by Danfoss | EZ Clip System Fitting Kit | Includes FJ3012-01-1012S Female O-Ring Short Pilot (R134a Low Side Port) 90° Elbow Fitting with FF14174 Clip & Cage Kit

FF14195 Aeroquip by Danfoss | EZ Clip System Fitting Kit | Includes FJ3012-01-1012S Female O-Ring Short Pilot (R134a Low Side Port) 90° Elbow Fitting with FF14174 Clip & Cage Kit

$75.84 - $75.84
$75.84
$75.84 - $75.84
$75.84

Aeroquip® by Danfoss
EZ Clip System Fitting Kit

EZ Clip Fitting, pre-packed, with the needed clips and cages for installation, in a single package.
Specifications for Variant SKU: FF14195 Danfoss
Brand: Aeroquip, E-Z Clip
Series: EZ Clip
Shape (Orientation): 90 Degree
Material(s): Carbon Steel
Compatible with the following Series: GH001 Series
Additional Information:
Fitting Kit
Part Number		 Kit Contents
Fitting Size Hose Size EZ Clip Fitting Description Fitting
Part Number		 Cages & Clips
Kit
FF14176 -06 -06 Female O-Ring Short Pilot FJ5984-0606S FF14171
FF14177 -06 -08 Female O-Ring Short Pilot FJ5984-0608S FF14172
FF14178 -08 -08 Female O-Ring Short Pilot FJ5984-0808S FF14172
FF14179 -08 -10 Female O-Ring Short Pilot FJ5984-0810S FF14173
FF14180 -10 -10 Female O-Ring Short Pilot FJ5984-1010S FF14173
FF14181 -10 -12 Female O-Ring Short Pilot FJ5984-1012S FF14174
FF14182 -12 -12 Female O-Ring Short Pilot FJ5984-1212S FF14174

FF14183 -06 -06 Female O-Ring Short Pilot 45° Elbow FJ3055-01-0606S FF14171
FF14184 -08 -08 Female O-Ring Short Pilot 45° Elbow FJ3055-03-0808S FF14172
FF14185 -10 -10 Female O-Ring Short Pilot 45° Elbow FJ3055-05-1010S FF14173
FF14186 -12 -12 Female O-Ring Short Pilot 45° Elbow FJ3055-07-1212S FF14174

FF14187 -06 -06 Female O-Ring Short Pilot 90° Elbow FJ5985-0606S FF14171
FF14188 -06 -08 Female O-Ring Short Pilot 90° Elbow FJ5985-0608S FF14172
FF14189 -08 -08 Female O-Ring Short Pilot 90° Elbow FJ5985-0808S FF14172
FF14190 -08 -10 Female O-Ring Short Pilot 90° Elbow FJ5985-0810S FF14173
FF14191 -10 -10 Female O-Ring Short Pilot 90° Elbow FJ5985-1010S FF14173
FF14192 -10 -12 Female O-Ring Short Pilot 90° Elbow FJ5985-1012S FF14174
FF14193 -12 -12 Female O-Ring Short Pilot 90° Elbow FJ5985-1212S FF14174

FF14194 -10 -10 Female O-Ring Short Pilot (R134a Low Side Port) FJ3012-02-1010S FF14173
FF14195 -10 -12 Female O-Ring Short Pilot (R134a Low Side Port) FJ3012-01-1012S FF14174
FF14196 -12 -12 Female O-Ring Short Pilot (R134a Low Side Port) FJ3012-03-1212S FF14174

FF14197 -06 -06 Male O-Ring Short Pilot FJ3052-0606S FF14171
FF14198 -06 -08 Male O-Ring Short Pilot FJ3052-0608S FF14172
FF14199 -08 -08 Male O-Ring Short Pilot FJ3052-0808S FF14172
FF14200 -10 -10 Male O-Ring Short Pilot FJ3052-1010S FF14173
FF14201 -10 -12 Male O-Ring Short Pilot FJ3052-1012S FF14174
FF14202 -12 -12 Male O-Ring Short Pilot FJ3052-1212S FF14174

FF14203 -06 -06 Male O-Ring Short Pilot 90° Elbow FJ3019-03-0606S FF14171
FF14204 -06 -08 Male O-Ring Short Pilot 90° Elbow FJ3019-02-0608S FF14172
FF14205 -08 -08 Male O-Ring Short Pilot 90° Elbow FJ3019-04-0808S FF14172
FF14206 -08 -10 Male O-Ring Short Pilot 90° Elbow FJ3019-06-0810S FF14173
FF14207 -10 -12 Male O-Ring Short Pilot 90° Elbow FJ3019-01-1012S FF14174
FF14208 -12 -12 Male O-Ring Short Pilot 90° Elbow FJ3019-05-1212S FF14174
FF14209 -10 -10 Male O-Ring Short Pilot 90° Elbow FJ3019-07-1010S FF14173

FF14210 -06 -06 Lifesaver Braze Nipple FF12262-0606 FF14171
FF14211 -08 -08 Lifesaver Braze Nipple FF12262-0808 FF14172
FF14212 -10 -10 Lifesaver Braze Nipple FF12262-1010 FF14173
FF14213 -10 -12 Lifesaver Braze Nipple FF12262-1012 FF14174

FF14214 -08 -08 Male O-Ring Short Pilot 45° Elbow FJ3116-03-0808S FF14172
FF14215 -06 -06 Male O-Ring Short Pilot 45° Elbow FJ3116-01-0606S FF14171
FF14216 -10 -10 Male O-Ring Short Pilot 45° Elbow FJ3116-02-1010S FF14173

FF14217 -06 -06 Male O-Ring Pilot Bulkhead FJ3513-0606S FF14171
- -08 -08 Male O-Ring Pilot Bulkhead FJ3513-0808S FF14172
FF14219 -10 -10 Male O-Ring Pilot Bulkhead FJ3513-1010S FF14173

FF14220 -06 -06 Male O-Ring Pilot Bulkhead 90° Elbow FJ3514-0606S FF14171
FF14221 -08 -08 Male O-Ring Pilot Bulkhead 90° Elbow FJ3514-0808S FF14172
FF14222 -10 -10 Male O-Ring Pilot Bulkhead 90° Elbow FJ3514-1010S FF14173
FF14223 -10 -12 Male O-Ring Pilot Bulkhead 90° Elbow FJ3514-1012S FF14174

FF14224 -10 -10 Female O-Ring Short Pilot (R134a Low Side Port) FJ3054-1010S FF14173
FF14225 -10 -12 Female O-Ring Short Pilot (R134a Low Side Port) FJ3054-1012S FF14174

FF14226 -08 -08 Female O-Ring Short Pilot (R134a High Side Port) FJ3053-0808S FF14172

FF14227 -06 -06 Female O-Ring Long Pilot (Charge Port) 90° Elbow FJ3289-03-0606S FF14171
FF14228 -08 -08 Female O-Ring Long Pilot (Charge Port) 90° Elbow FJ3289-01-0808S FF14172
FF14229 -10 -12 Female O-Ring Long Pilot (Charge Port) 90° Elbow FJ3289-05-1012S FF14174

FF14230 -06 -06 Splicer (Switch Port) FJ3171-0606S FF13819
FF14231 -08 -08 Splicer (Switch Port) FJ3171-0808S FF13820
FF14232 -10 -10 Splicer (Switch Port) FJ3171-1010S FF13821
FF14233 -12 -12 Splicer (Switch Port) FJ3171-1212S FF13822

FF14234 -10 -12 Male O-Ring Short Pilot (R134a Low Side Port) FJ3132-02-1012S FF14174

FF14235 -08 -08 Male O-Ring Short Pilot (R134a High Side Port) FJ3131-02-0808S FF14172

FF14236 -08 -08 Male O-Ring Short Pilot (R134a High Side Port) 90° Elbow FJ3134-02-0808S FF14172

FF14237 -10 -12 Male O-Ring Short Pilot (R134a Low Side Port) 90° Elbow FJ3135-02-1012S FF14174

FF14238 -06 -06 Splicer 90° Elbow FJ3058-01-0606S FF14171
FF14239 -08 -08 Splicer 90° Elbow FJ3058-02-0808S FF14172
FF14240 -10 -10 Splicer 90° Elbow FJ3058-03-1010S FF14173

FF14241 -06 -06 Female SAE 45° Flare FJ3057-01-0606S FF14171
FF14242 -08 -08 Female SAE 45° Flare FJ3057-03-0808S FF14172
FF14243 -10 -10 Female SAE 45° Flare FJ3057-05-1010S FF14173
FF14244 -12 -12 Female SAE 45° Flare FJ3057-07-1212S FF14174

FF14245 -06 -06 Female ORS Swivel 90° Elbow FJ5994-01-0606S FF14171
FF14246 -08 -08 Female ORS Swivel 90° Elbow FJ5994-02-0808S FF14172
FF14247 -10 -10 Female ORS Swivel 90° Elbow FJ5994-04-1010S FF14173
FF14248 -12 -12 Female ORS Swivel 90° Elbow FJ5994-03-1212S FF14174
FF14249 -10 -12 Female ORS Swivel 90° Elbow FJ5994-05-1012S FF14174

FF14250 -06 -06 Splicer FJ3045-0606S FF14171
FF14251 -08 -08 Splicer FJ3045-0808S FF14172
FF14252 -10 -10 Splicer FJ3045-1010S FF14173
FF14253 -12 -12 Splicer FJ3045-1212S FF14174

FF14254 -12 -12 Splicer 90° Elbow FJ3058-04-1212S FF14174

FF14255 -10 -10 Splicer (R134a Low Side Port) FJ5986-1010S FF13821
FF14256 -12 -12 Splicer (R134a Low Side Port) FJ5986-1212S FF13822

FF14257 -06 -06 Splicer (R134a High Side Port) FJ5995-0606S FF13819
FF14258 -08 -08 Splicer (R134a High Side Port) FJ5995-0808S FF13820
FF14259 -10 -10 Splicer (R134a High Side Port) FJ5995-1010S FF13821

FF14260 -06 -06 Female O-Ring Short Pilot (R134a High Side Port) 90° Elbow FJ3013-02-0606S FF14171
FF14261 -08 -08 Female O-Ring Short Pilot (R134a High Side Port) 90° Elbow FJ3013-03-0808S FF14172
FF14262 - - Female O-Ring Short Pilot (R134a High Side Port) 90° Elbow FJ3013-01-0810S FF14173

FF14263 -08 -06 Pad Style Connection (Volvo) FJ3977-0806S FF14171
FF14264 -08 -10 Pad Style Connection (Volvo) FJ3977-0810S FF14173
- -10 -12 Pad Style Connection (Volvo) FJ3977-1012S FF14174

- -10 -12 Pad Style Connection (Volvo) (R134a Low Side Port) FJ3978-1012S FF14174

- -10 -12 Pad Style Connection (Volvo) (R134a Low Side Port) 60° Elbow FJ3979-1012S FF14174

- -08 -10 Pad Style Connection 180° FJ3980-0810S FF14173

FF14269 -10 -12 Pad Style Connection (Volvo) (R134a Low Side Port) 90° Elbow FJ3981-1012S FF14174

FF14270 -08 -06 Pad Style Connection (Volvo) 90° Elbow FJ3982-0806S FF14171
FF14271 -08 -10 Pad Style Connection (Volvo) 90° Elbow FJ3982-0810S FF14173

FF14272 -08 -06 Pad Style Connection (Volvo) (Pad Orientation 90°) 90° Elbow FJ3983-0806S FF14171

- -10 -08 Female Rotalok Fitting EJ3320-1008S FF14172

FF14371 -10 -08 Female Rotalok Short Drop 90° Elbow EJ3321-1008S FF14172
FF14372 -10 -12 Female Rotalok Short Drop 90° Elbow EJ3321-1012S FF14174

- -10 -08 Female Rotalok 90° Elbow FJ3225-1008S FF14172
- -10 -12 Female Rotalok 90° Elbow EJ3225-1012S FF14174
FF14375 -10 -10 Female Rotalok 90° Elbow FJ3225-1010S FF14173

FF14380 -12 -10 Female O-Ring (Short Pilot) FJ5984-1210S FF14173

FF14381 -10 -10 Female O-Ring (Long Pilot) (Charge Port 7/16-20 thd) 90° Elbow FJ3289-02-1010S FF14173

FF14382 -06 -06 Female SAE 45° Flare 90° Elbow FJ3149-01-0606S FF14171
FF14383 -08 -08 Female SAE 45° Flare 90° Elbow FJ3149-03-0808S FF14172
FF14384 -10 -10 Female SAE 45° Flare 90° Elbow FJ3149-04-1010S FF14173
